Friction stir welding for lightweight materials: benefits and challenges

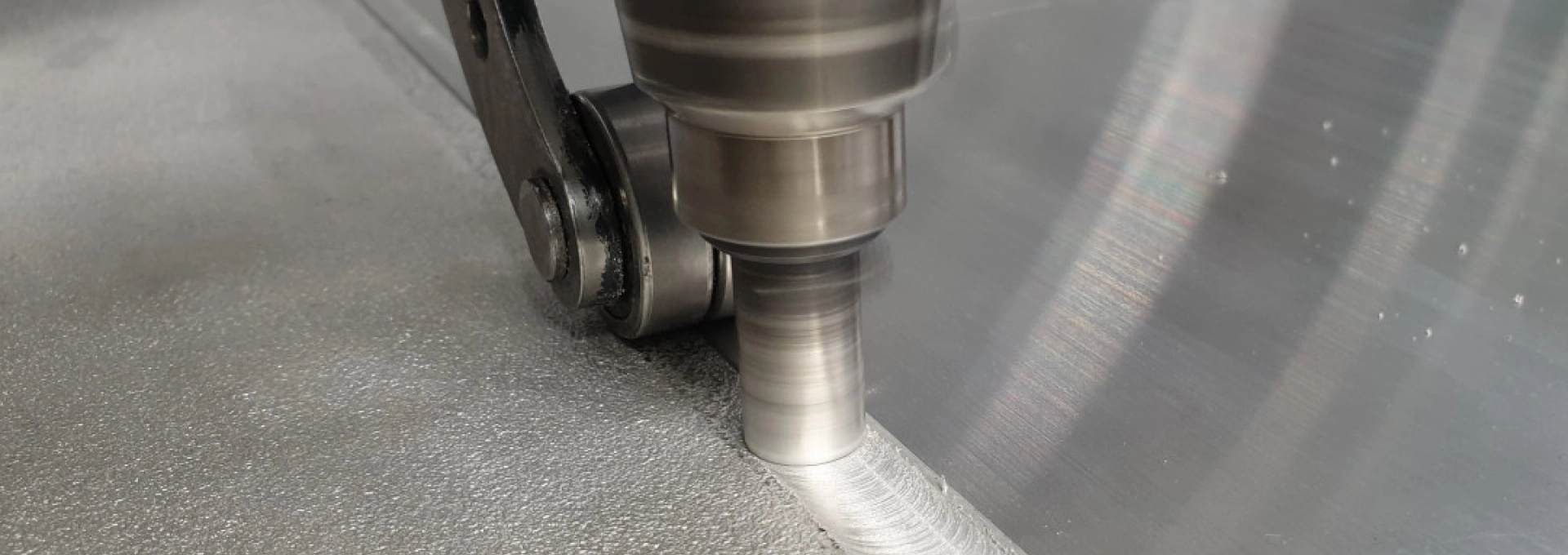

Friction stir welding (FSW) has emerged as a game-changing technology in the field of materials joining, particularly for lightweight materials. This innovative solid-state welding process offers unique advantages in terms of joint quality, material properties, and environmental impact. As industries increasingly prioritize weight reduction and energy efficiency, FSW has become a critical tool for manufacturers working with aluminum, magnesium, and other lightweight alloys.

Fundamentals of friction stir welding (FSW) technology

At its core, the friction stir welding process relies on the generation of frictional heat and plastic deformation to create a solid-state bond between materials. A rotating tool with a specially designed pin and shoulder is plunged into the workpiece and traversed along the joint line. The friction between the tool and the workpiece generates heat, softening the material without reaching its melting point. As the tool moves, it mechanically stirs the plasticized material, creating a highly refined, recrystallized microstructure in the weld zone.

One of the key advantages of FSW is its ability to produce welds with minimal defects and excellent mechanical properties. The process avoids many of the issues associated with fusion welding, such as porosity, hot cracking, and solidification defects. Additionally, FSW can join materials that are traditionally considered "unweldable" by conventional methods, opening up new possibilities for lightweight structural design.

The FSW process can be broken down into several distinct stages:

Plunge stage: The rotating tool is inserted into the workpiece until the shoulder makes contact with the surface.
Dwell stage: The tool remains stationary for a short period to generate sufficient heat and soften the material.
Welding stage: The tool traverses along the joint line, stirring and consolidating the plasticized material.
Exit stage: The tool is withdrawn from the workpiece, leaving behind a solid-state weld.

Understanding these stages is crucial for optimizing the FSW process and achieving high-quality welds in lightweight materials. The complex interplay between tool design, process parameters, and material properties determines the final weld characteristics and performance.

Optimal lightweight materials for FSW applications

While FSW can be applied to a wide range of materials, it has found particular success in joining lightweight alloys that are challenging to weld using conventional techniques. The selection of appropriate materials for FSW applications depends on factors such as strength-to-weight ratio, corrosion resistance, and formability. Let's explore some of the most promising lightweight materials for FSW applications:

Aluminum alloys: 6061-T6 and 7075-T6

Aluminum alloys are among the most widely used lightweight materials in industries such as aerospace and automotive. The 6061-T6 and 7075-T6 alloys are particularly popular for FSW applications due to their excellent strength-to-weight ratios and good weldability. These heat-treatable alloys offer a combination of high strength, corrosion resistance, and good formability.

FSW of 6061-T6 and 7075-T6 alloys typically results in a fine-grained, homogeneous microstructure in the weld zone, leading to improved mechanical properties compared to fusion welding methods. The process parameters for these alloys need to be carefully optimized to achieve the desired balance between strength and ductility in the welded joint.

Magnesium alloys: AZ31 and ZK60

Magnesium alloys offer even greater weight savings potential than aluminum, with densities approximately 35% lower. The AZ31 and ZK60 alloys are commonly used in FSW applications due to their good strength-to-weight ratios and formability. However, magnesium alloys present unique challenges in FSW due to their high reactivity and tendency to oxidize rapidly at elevated temperatures.

Successful FSW of magnesium alloys requires careful control of process parameters and often necessitates the use of shielding gases to prevent oxidation. When properly executed, FSW can produce high-quality joints in magnesium alloys with minimal defects and improved mechanical properties compared to traditional welding methods.

Titanium alloys: ti-6al-4v

Titanium alloys, particularly Ti-6Al-4V, are prized for their exceptional strength-to-weight ratio and corrosion resistance. These properties make them ideal for high-performance aerospace and biomedical applications. However, titanium alloys are notoriously difficult to weld using conventional fusion techniques due to their high reactivity and sensitivity to contamination.

FSW offers a promising solution for joining titanium alloys, as it avoids many of the issues associated with fusion welding. The solid-state nature of the process minimizes the risk of contamination and reduces the formation of brittle intermetallic compounds. However, FSW of titanium alloys presents significant challenges in terms of tool wear and process control due to the material's high strength and low thermal conductivity.

Advanced polymer matrix composites

While FSW is primarily associated with metallic materials, recent research has explored its application to advanced polymer matrix composites. These lightweight materials offer exceptional strength-to-weight ratios and are increasingly used in aerospace and automotive applications. FSW of composites presents unique challenges due to the heterogeneous nature of the materials and the risk of fiber damage during the welding process.

Successful FSW of polymer matrix composites requires careful optimization of process parameters and tool design to minimize thermal degradation of the matrix and preserve fiber integrity. When properly executed, FSW can produce joints with improved strength and fatigue resistance compared to mechanical fastening methods.

FSW process parameters and their impact on weld quality

The success of friction stir welding in joining lightweight materials hinges on the careful selection and control of process parameters. These parameters significantly influence the heat generation, material flow, and resulting microstructure of the welded joint. Understanding the relationships between process parameters and weld quality is essential for optimizing FSW performance across different materials and joint configurations.

Tool rotation speed and traverse rate optimization

Two of the most critical FSW process parameters are tool rotation speed and traverse rate. The rotation speed determines the amount of frictional heat generated, while the traverse rate affects the heat input per unit length of the weld. Finding the optimal balance between these parameters is crucial for achieving high-quality welds in lightweight materials.

For aluminum alloys, typical rotation speeds range from 800 to 1500 rpm, with traverse rates between 100 and 500 mm/min. However, these values can vary significantly depending on the specific alloy, thickness, and joint configuration. Higher rotation speeds generally result in increased heat input and more extensive plasticization of the material, while faster traverse rates can lead to insufficient heating and poor material consolidation.

Axial force and plunge depth control

The axial force applied to the FSW tool and the plunge depth of the pin play crucial roles in ensuring proper material flow and consolidation. Insufficient axial force can result in inadequate shoulder contact and poor heat generation, while excessive force may lead to tool wear and workpiece thinning.

Plunge depth control is particularly important for maintaining consistent weld quality along the joint line. Many modern FSW systems employ force-controlled welding, where the axial force is maintained at a constant level throughout the process. This approach helps compensate for variations in workpiece thickness and ensures consistent heat input and material flow.

Tool geometry: shoulder design and pin profile

The design of the FSW tool, including the shoulder geometry and pin profile, has a significant impact on material flow, heat generation, and weld quality. The shoulder is primarily responsible for generating frictional heat and containing the plasticized material, while the pin promotes material mixing and consolidation.

Common shoulder designs include flat, concave, and scrolled profiles, each offering different advantages in terms of heat generation and material containment. Pin profiles can range from simple cylindrical shapes to more complex designs with features such as threads, flats, or flutes. These advanced pin designs can enhance material flow and increase the volume of material affected by the stirring action.

Thermal management techniques

Effective thermal management is crucial for maintaining consistent weld quality and minimizing distortion in FSW of lightweight materials. Techniques such as active cooling of the workpiece or tool can help control the heat input and thermal gradients during welding.

For materials with low melting points, such as some aluminum alloys, excessive heat input can lead to softening and poor mechanical properties in the heat-affected zone. In these cases, techniques like pulsed FSW or the use of cooling systems can help maintain optimal temperature conditions throughout the weld.

Conversely, for high-strength materials like titanium alloys, preheating of the workpiece may be necessary to achieve sufficient plasticization and avoid excessive tool wear. The development of advanced thermal management strategies continues to be an active area of research in FSW technology.

Microstructural evolution in FSW joints of lightweight materials

The unique thermal and mechanical conditions present during friction stir welding lead to significant microstructural changes in the welded joint. Understanding these microstructural transformations is crucial for predicting and optimizing the mechanical properties of FSW joints in lightweight materials.

The FSW process typically results in three distinct microstructural zones:

Nugget Zone (NZ): The central region directly affected by the tool pin, characterized by fine, equiaxed grains due to dynamic recrystallization.
Thermo-Mechanically Affected Zone (TMAZ): The region adjacent to the nugget, experiencing both plastic deformation and heat exposure.
Heat-Affected Zone (HAZ): The area affected by heat but not by plastic deformation, often exhibiting grain growth or precipitate coarsening.

In aluminum alloys, the nugget zone typically exhibits a fine-grained structure with enhanced strength compared to the base material. However, the HAZ may experience softening due to precipitate coarsening or dissolution, particularly in heat-treatable alloys like 6061-T6 and 7075-T6. This softening can lead to a reduction in overall joint strength if not properly managed through process optimization.

For magnesium alloys, the microstructural evolution during FSW is characterized by significant grain refinement in the nugget zone, often resulting in improved strength and ductility. The TMAZ may exhibit a mix of recrystallized and deformed grains, while the HAZ typically shows some grain growth due to thermal exposure.

In titanium alloys like Ti-6Al-4V, the microstructural changes during FSW are complex and highly dependent on the process parameters. The nugget zone often exhibits a fine, equiaxed α+β microstructure, while the TMAZ and HAZ may show varying degrees of α-phase transformation and β-phase growth.

Mechanical properties enhancement through FSW

One of the primary advantages of friction stir welding for lightweight materials is its potential to enhance mechanical properties compared to traditional joining methods. The unique microstructural evolution and minimal heat input associated with FSW can lead to improved strength, fatigue resistance, and overall joint performance.

Tensile strength and yield stress improvements

FSW joints in lightweight alloys often exhibit tensile strengths approaching or even exceeding those of the base material. This is particularly true for aluminum alloys, where FSW can achieve joint efficiencies (ratio of joint strength to base material strength) of 70-100%, depending on the alloy and process parameters.

For example, optimized FSW joints in 6061-T6 aluminum can achieve tensile strengths of 290-310 MPa, which is comparable to the base material strength of 310 MPa. Similarly, FSW of 7075-T6 aluminum has demonstrated joint efficiencies of up to 80%, with tensile strengths exceeding 480 MPa.

Fatigue life extension in FSW joints

The fatigue performance of FSW joints in lightweight materials is often superior to that of fusion-welded joints. This improvement is attributed to several factors, including:

Reduced residual stresses due to the low heat input of the FSW process
Elimination of solidification defects and porosity
Refinement of the grain structure in the weld zone

Studies have shown that FSW joints in aluminum alloys can achieve fatigue lives up to 10 times longer than those of comparable fusion-welded joints. This enhanced fatigue performance is particularly valuable in applications subject to cyclic loading, such as aerospace structures and automotive components.

Hardness distribution across the weld zone

The hardness profile across an FSW joint provides valuable insights into the local mechanical properties and microstructural changes. In aluminum alloys, the hardness distribution typically shows a characteristic "W" shape, with the lowest hardness values observed in the HAZ due to precipitate coarsening or dissolution.

For magnesium alloys, the hardness profile often exhibits a peak in the nugget zone due to grain refinement, with a gradual decrease towards the base material. In titanium alloys, the hardness distribution can be more complex, depending on the specific phase transformations and grain structure evolution during the FSW process.

Fracture toughness and crack propagation resistance

FSW joints in lightweight materials often demonstrate improved fracture toughness and crack propagation resistance compared to fusion-welded joints. This enhancement is attributed to the fine-grained microstructure in the nugget zone and the absence of brittle intermetallic compounds that can form during fusion welding.

Challenges and limitations of FSW for lightweight materials

While friction stir welding offers numerous advantages for joining lightweight materials, it also presents several challenges and limitations that must be addressed for successful implementation. Understanding these challenges is crucial for developing effective FSW strategies and expanding the application of this technology.

Tool wear and material adhesion issues

One of the most significant challenges in FSW of lightweight materials is tool wear, particularly when welding high-strength alloys or abrasive materials. Tool wear can lead to changes in weld quality over time and increase production costs due to the need for frequent tool replacement.

For aluminum alloys, tool wear is generally manageable with proper material selection and process optimization. However, welding of titanium alloys and some advanced composites can result in rapid tool degradation due to the high temperatures and stresses involved.

Material adhesion to the tool surface is another common issue, particularly with reactive materials like aluminum and magnesium. This adhesion can affect material flow and weld quality, necessitating the use of specialized tool coatings or surface treatments to minimize sticking.

Dissimilar material joining complexities

Dissimilar material joining in friction stir welding (FSW) presents several complexities due to the differing physical and chemical properties of the materials involved. When joining lightweight materials such as aluminum and magnesium, differences in melting points, thermal conductivity, and mechanical strength can cause issues like weak bonding, cracks, or defects in the weld zone. These materials often have varied plastic flow behaviors under the welding process, leading to inconsistencies in weld quality. Additionally, tool wear and material compatibility further complicate the process, limiting the application of FSW for certain dissimilar lightweight material combinations.

Dissimilar material joining complexities

While FSW excels at joining similar lightweight materials, the challenges multiply when attempting to join dissimilar materials. The differences in melting points, thermal conductivities, and mechanical properties between materials can lead to asymmetric heat distribution, uneven material flow, and the formation of brittle intermetallic compounds.

For example, joining aluminum to steel presents significant challenges due to the formation of Fe-Al intermetallics at the interface. These compounds can severely compromise joint strength and ductility. Researchers have explored various approaches to mitigate this issue, such as using interlayer materials or optimizing process parameters to minimize intermetallic formation.

Similarly, joining magnesium to aluminum or titanium to aluminum requires careful control of process parameters and often necessitates the use of specialized tool designs to manage the disparate material properties and prevent excessive intermetallic formation.

Defect formation: tunneling and void creation

Despite its many advantages, FSW is not immune to defect formation, particularly when process parameters are not properly optimized. Two common defects in FSW of lightweight materials are tunneling and void creation.

Tunneling defects, characterized by a continuous or intermittent lack of bonding along the weld centerline, can occur due to insufficient heat input or inadequate material flow. These defects significantly reduce joint strength and fatigue performance. To prevent tunneling, careful optimization of tool rotation speed, traverse rate, and axial force is essential.

Void formation, often occurring on the advancing side of the weld, can result from improper material consolidation during the stirring process. Voids act as stress concentrators and can severely impact joint performance. Addressing void formation typically involves adjusting tool geometry, tilt angle, or process parameters to enhance material flow and consolidation.

Surface finish and post-weld processing requirements

The surface finish of FSW joints in lightweight materials can vary significantly depending on the process parameters and tool design. While FSW generally produces a smoother surface than fusion welding methods, some applications may require additional post-weld processing to achieve the desired surface quality.

Common surface finish issues in FSW include:

Flash formation along the weld edges
Tool marks or striations on the weld surface
Surface roughness due to material flow patterns

To address these issues, various post-weld processing techniques may be employed:

Machining or grinding to remove excess material and achieve a smooth surface
Shot peening or burnishing to improve surface finish and induce compressive residual stresses
Anodizing or other surface treatments to enhance corrosion resistance and aesthetics

It's important to note that the need for post-weld processing can impact the overall cost and efficiency of the FSW process. Therefore, optimizing FSW parameters to minimize surface defects and reduce post-weld processing requirements is an active area of research and development in the field of lightweight materials joining.

Microstructural evolution in FSW joints of lightweight materials

The microstructural changes that occur during friction stir welding of lightweight materials are complex and highly dependent on the specific alloy composition and process parameters. Understanding these changes is crucial for predicting and optimizing the mechanical properties of FSW joints.

In aluminum alloys, the FSW process typically results in a fine, equiaxed grain structure in the nugget zone due to dynamic recrystallization. This refinement often leads to improved strength and ductility compared to the base material. However, the heat-affected zone (HAZ) may experience precipitate coarsening or dissolution, potentially leading to local softening.

For magnesium alloys, the microstructural evolution during FSW is characterized by significant grain refinement in the nugget zone, often resulting in a bimodal grain structure with both fine and coarse grains. This refinement can lead to enhanced strength and ductility in the weld zone. The TMAZ typically exhibits elongated grains oriented along the material flow direction.

In titanium alloys, the microstructural changes during FSW are particularly complex due to the allotropic transformation between the α and β phases. The nugget zone often exhibits a fine, equiaxed α+β microstructure, while the TMAZ may show a mix of transformed β and primary α phases. The HAZ can experience varying degrees of α-phase transformation and β-phase growth, depending on the peak temperatures reached during welding.

For advanced polymer matrix composites, the microstructural evolution during FSW involves not only changes in the matrix material but also potential reorientation or damage to the reinforcing fibers. Careful control of process parameters is essential to maintain fiber integrity and achieve optimal load transfer between the matrix and reinforcement in the welded joint.

Mechanical properties enhancement through FSW

Tensile strength and yield stress improvements

One of the primary advantages of friction stir welding for lightweight materials is its ability to produce joints with tensile strengths approaching or even exceeding those of the base material. This is particularly true for aluminum alloys, where FSW can achieve joint efficiencies (ratio of joint strength to base material strength) of 70-100%, depending on the alloy and process parameters.

In magnesium alloys, FSW has shown the potential to produce joints with tensile strengths exceeding 90% of the base material strength. For instance, FSW joints in AZ31 magnesium alloy have achieved tensile strengths of 240-260 MPa, compared to the base material strength of 260-280 MPa.

For titanium alloys, such as Ti-6Al-4V, FSW can produce joints with tensile strengths ranging from 90-100% of the base material strength, depending on the process parameters and post-weld heat treatment. This high joint efficiency is particularly valuable in aerospace applications where maintaining the full strength of titanium components is critical.

Fatigue life extension in FSW joints

The fatigue performance of FSW joints in lightweight materials is often superior to that of fusion-welded joints. This improvement is attributed to several factors:

Reduced residual stresses due to the low heat input of the FSW process
Elimination of solidification defects and porosity
Refinement of the grain structure in the weld zone
Improved surface finish compared to fusion welding

Studies have shown that FSW joints in aluminum alloys can achieve fatigue lives up to 10 times longer than those of comparable fusion-welded joints. For example, FSW joints in 2024-T3 aluminum have demonstrated fatigue strengths approaching 70% of the base material fatigue strength, compared to only 40-50% for fusion-welded joints.

In magnesium alloys, FSW has shown the potential to significantly improve fatigue performance compared to fusion welding methods. FSW joints in AZ31 magnesium alloy have exhibited fatigue strengths up to 80% of the base material strength, whereas fusion-welded joints typically achieve only 50-60% of the base material fatigue strength.

For titanium alloys, the fatigue performance of FSW joints can be particularly impressive. Properly optimized FSW joints in Ti-6Al-4V have demonstrated fatigue lives comparable to or even exceeding those of the base material, especially in the high-cycle fatigue regime.

Hardness distribution across the weld zone

For example, in 6061-T6 aluminum, the nugget zone may exhibit hardness values of 70-80 HV, while the HAZ may show a drop to 60-65 HV. The base material typically maintains its original hardness of 100-110 HV. This softening in the HAZ can be mitigated through careful control of welding parameters or post-weld heat treatment.

In magnesium alloys, the hardness profile often exhibits a peak in the nugget zone due to grain refinement, with a gradual decrease towards the base material. For AZ31 magnesium alloy, the nugget zone may show hardness values of 65-70 HV, compared to the base material hardness of 55-60 HV.

For titanium alloys, the hardness distribution can be more complex, depending on the specific phase transformations and grain structure evolution during the FSW process. In Ti-6Al-4V, the nugget zone may exhibit hardness values of 340-360 HV, while the HAZ can show variations ranging from 320-380 HV, depending on the cooling rate and resulting microstructure.

Fracture toughness and crack propagation resistance

In aluminum alloys, FSW joints have shown fracture toughness values ranging from 80-95% of the base material toughness, depending on the alloy and welding parameters. For example, FSW joints in 2024-T3 aluminum have demonstrated fracture toughness values of 28-30 MPa√m, compared to 32-34 MPa√m for the base material.

Magnesium alloy FSW joints have also exhibited improved fracture toughness compared to fusion-welded joints. In AZ31 magnesium alloy, FSW joints have achieved fracture toughness values of 15-18 MPa√m, which is comparable to the base material toughness of 16-20 MPa√m.

For titanium alloys, the fracture toughness of FSW joints can approach or even exceed that of the base material, particularly when optimized post-weld heat treatments are applied. FSW joints in Ti-6Al-4V have demonstrated fracture toughness values of 60-70 MPa√m, which is within 90-95% of the base material toughness.

The improved crack propagation resistance of FSW joints is particularly valuable in applications subject to fatigue loading or in environments where stress corrosion cracking is a concern. This enhanced performance contributes to the overall durability and reliability of lightweight structures joined using FSW technology.
